Name：
Flanged gate valve
Type：
Gate valve series
Product details
产品标准：API602&ANSI B16.34
产品型号：Z4
产品介质：WOG
产品编号：7298514116

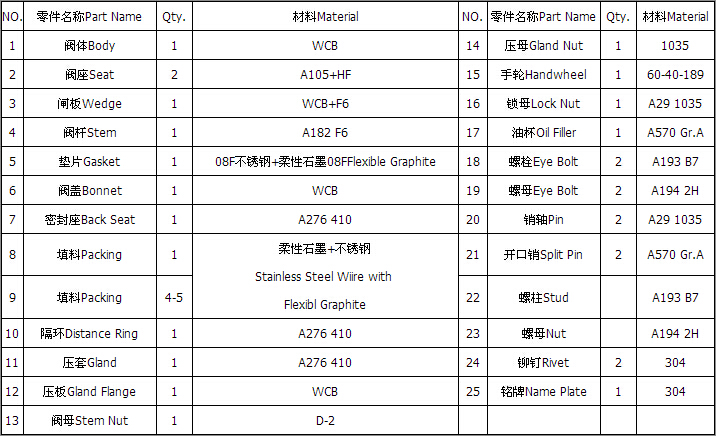

主要零件及材质Main parts and materials

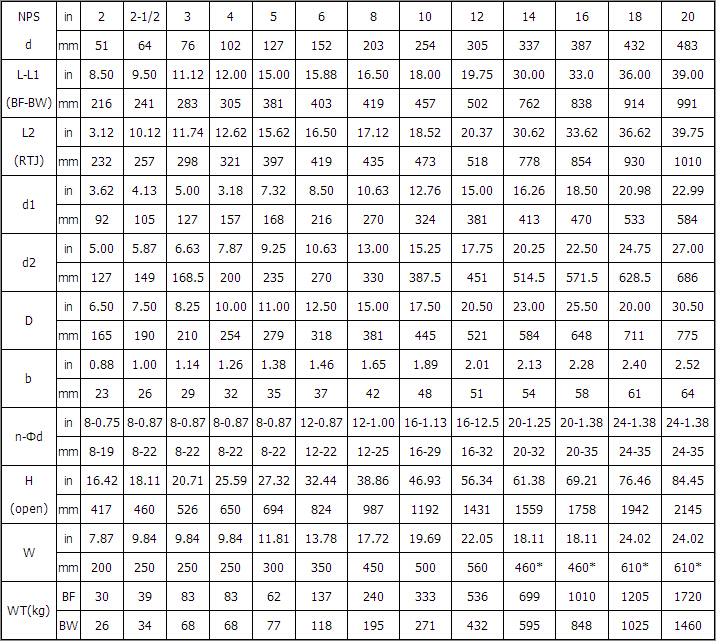

主要连接尺寸及重量Main connection dimensions and weights
